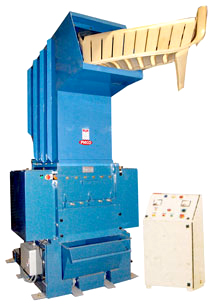

Granulator 800
 |
||||
| Model | PCF - 800 | PCF - 800/5 | PCR - 800 | PSTG - 800 |
| Length of Blades | 400 x 2 = 800mm | 400 x 2 = 800mm | 400 x 2 = 800mm | 260mm-9, 400mm-4 |
| No. of Blades | 4 x 2 = 8 (400 Each) | 5 x 2 = 10(400 Each) | 6 x 2 = 12 (400 Each) | 9 + 4 = 13 |
| Throat Size | 800 x 750mm | 800 x 750mm | 800 x 750mm | 800 x 750mm |
| Grinding Capacity | 550 Kgs/Hr | 550 Kgs/Hr | 600 Kgs/Hr | 650 Kgs/Hr |
| Power Required | 50HP(37.5KW) | 50HP(37.5KW) | 50HP(37.5KW) | 50HP(37.5KW) |
| Suitable for grinding | Grinding 120 L / 150 Ltrs Barrel Auto Parts, Chairs & benches | 300mm Dia Pipes & Auto Parts like bumper, dashboard etc. | PVC tiles, films,sheets | Heavy duty pipes, Solid Thick Wall Articles & Lumps. |
 |
 |
 |
 |
|
 |
||||
| *Note: Capacity depends on scrap size, shape, material & feeding condition. Insulation for sound reduction can be provided at an extra cost. |
||||
